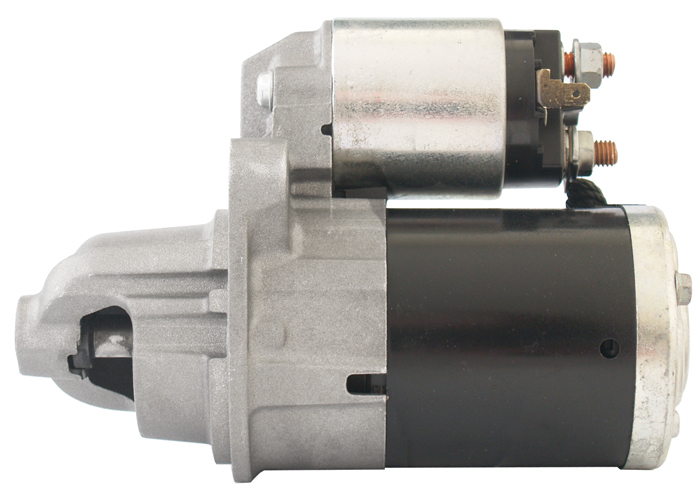

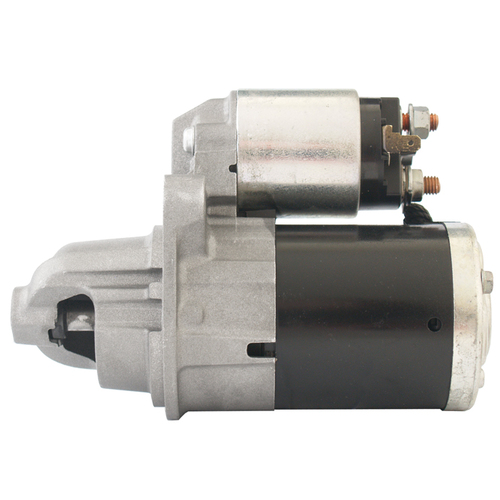

Starter Motor For Suzuki Jimny SN413 2000-13 M13A 1.3L Petrol

Calculate Shipping

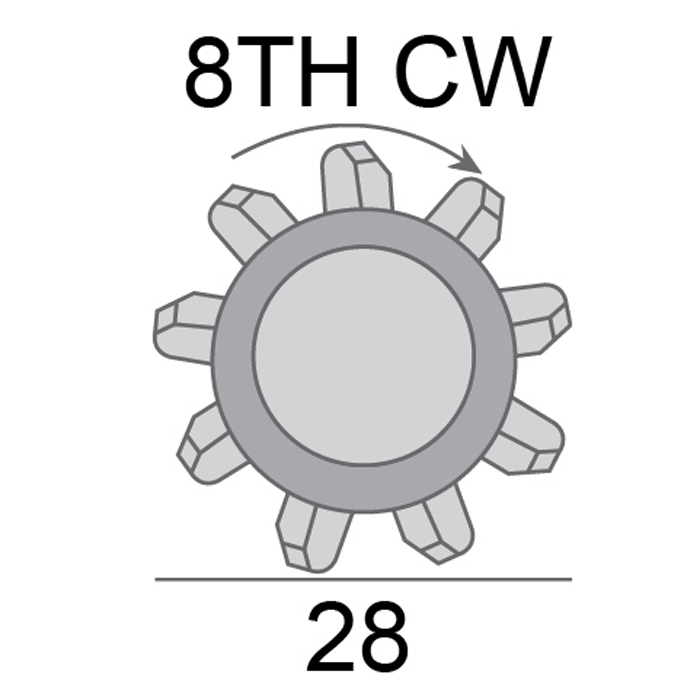

Suits Denso Starter Motor 12V 1.0KW 8TH CW
Applications: Holden Cruze, Suzuki Ignis
Engine: M15A

Overall Length	Mounting Hole Dia	Mt Holes Cnt to Cnt	Flange Dia	Nose Cone Length	Pinion at Rest	Field Hsg. Dia	Teeth Dia
188	2xM8x1.25	102	70	60	28	70	28

MAKE	MODEL	SUB MODEL	YEAR	ENGINE	LITRES	FUEL
HOLDEN	CRUZE	YG	2002-06	M15A	1.5	PETROL
SUZUKI	IGNIS		2000-05	M13A	1.3	PETROL
SUZUKI	IGNIS		2003-05	M15A	1.5	PETROL
SUZUKI	JIMNY	SN413	2000-13	M13A	1.3	PETROL
SUZUKI	LIANA	RH416	2001-07	M16A	1.6	PETROL
SUZUKI	LIANA	RH418	2004-07	M18A	1.8	PETROL
SUZUKI	SWIFT	RS415	2004-11	M15A	1.5	PETROL
SUZUKI	SWIFT	RS416	2005-11	M16A	1.6	PETROL
SUZUKI	SWIFT	FZ	2011-13	M16A	1.6	PETROL
SUZUKI	S-CROSS	JY	2014-16	M16A	1.6	PETROL
SUZUKI	GRAND VITARA	JT JB416	2005-08	M16A	1.6	PETROL

All Alternators and Starter Motors supplied by Aveska are warranted to be free of defects in materials and workmanship for the following periods (see table).

The warranty period commences from the date of purchase.

PASSENGER VEHICLE (PMV): 36 Months / 40,000km

COMMERCIAL AND RECREATIONAL VEHICLE (CV): PMV 24 Months / 40,000km

PMV - Refers to Passenger Motor Vehicles Only

CV - Refers to Light Commercial and Heavy Commercial Diesel applications

Conditions

All claims for warranty must be made within the relevant warranty period, by returning the products to Aveska at the purchases expense. With completed warranty claim form or proof of purchase.

The warranty does not apply to failure or damage to the unit caused by incorrect or faulty fittment, contamination by foreign materials or modification carried out by anyone other than Aveska.

Aveska pursuant to this warranty shall be limited to Aveska in it's discretion by either repairing or replacing the defective unit or providing a credit or refund of it's original invoice price. In no case shall this include any consequential or other costs of removal and refitting any unit.
